Feed Size: 400-1200mm
Inclination: 0-17°
Production Capacity: up to 1400t/h
Application Scope: Coal, metal mines, construction materials, chemical industry, electric power, food and other industrial fields.

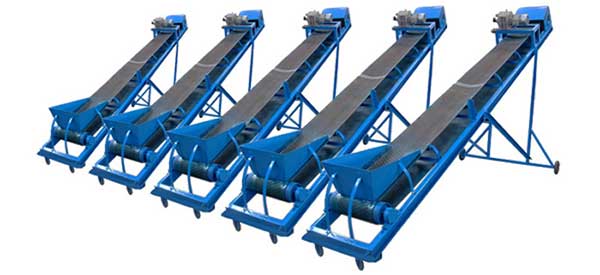

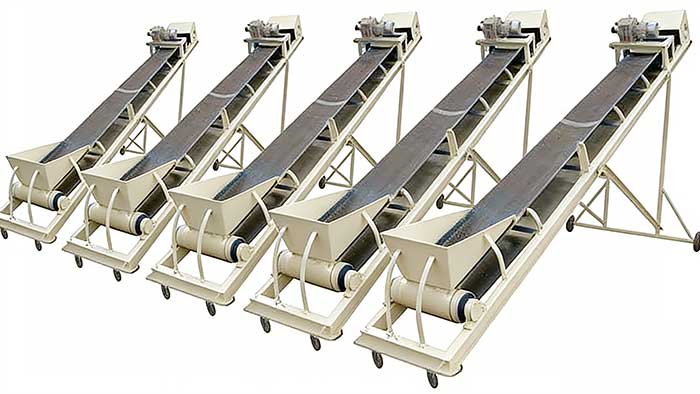

Belt conveyor is a kind of transport equipment, the use of belts for conveying items of machinery, widely used in industrial and mining, metallurgy, chemical industry, light industry, food and other industries, is one of the necessary equipment for modern assembly line production.
Belt conveyor usually consists of driving machine, speed reducer, pulley, frame, belt, support system, tensioning system and so on. Among them, the driving machine provides the power for the belt to run, the speed reducer will decelerate the force driven by the high-speed rotation of the driving machine to transfer to the drum, the drum is the track for the belt to move, the frame is the main structure of the belt conveyor, is the support for the various parts of the belt conveyor, and the belt is the rectangle ring rubber belt with the loaded conveyor material.

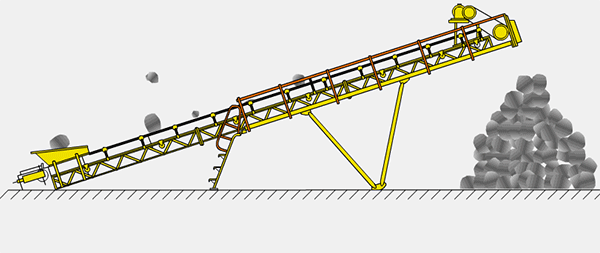

The working principle of the belt conveyor is that the driving machine drives the reducer to rotate, and the reducer transmits the high-speed rotating power to the pulley, and the belt is fixed on the pulley, and when the pulley is running, the belt will drive the materials to be conveyed. At the same time, the belt conveyor is also equipped with a tensioning system, which can adjust the tension of the belt to maintain a certain tension state.
(1) Large conveying capacity, can continuously convey a large amount of materials, is a highly efficient conveying equipment.
(2) The belt runs smoothly, low noise, simple maintenance.
(3) Wide range of application, can convey solid materials, granular materials, mixtures, fluids and so on.
(4) The belt conveyor is energy-saving and environmentally friendly, reducing energy consumption and environmental pollution in the production process.
(5) The belt conveyor runs stably, conveys materials with small chances, has low material breakage rate, and belongs to safe and reliable conveying equipment.
| Model | Width（mm） | Inclination（°） | Speed（m/s） | Capacity（t/h） | Power kw（L≤30m） |
| B800 | 800 | 0-17 | 1.0-2.0 | 300-600 | 5.5-18.5 |
| B1000 | 1000 | 0-17 | 1.0-2.0 | 490-900 | 7.5-22 |
| B1200 | 1200 | 0-17 | 1.0-2.0 | 730-1400 | 11-30 |
Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
