Feed Size: 65-300mm
Capacity: 12-1000t/h
Processible Materials: Calcite, limestone, granite, river pebbles, dolomite, glass, basalt, iron ore, etc.
Cone crushers are popular rock crushing machines in aggregates production, mining operations, and recycling applications. They are normally used in secondary, tertiary, and quaternary crushing stages. However, in cases where the grain size of the processed material is small enough by nature and the traditional primary crushing stage is not needed, also cone crushers can carry out the first stage of the crushing process.

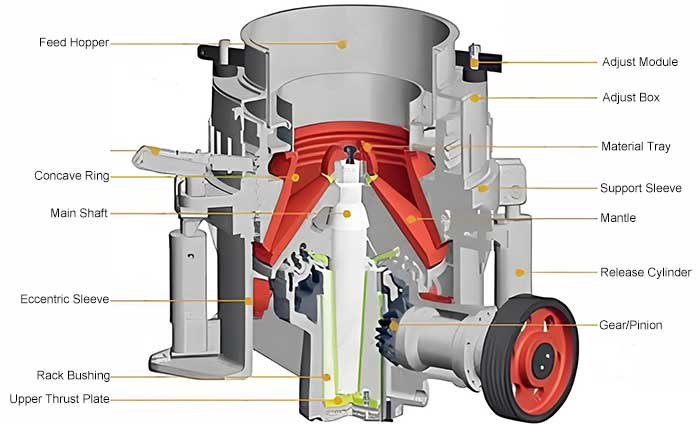

In the working process of the cone crusher, the motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone rotates and swings under the forced action of the eccentric shaft sleeve, so that the stone is constantly crushed, broken and broken by impact in the crushing chamber.Under the action of dead weight, the broken material is discharged from the lower discharge port of the crusher.
1. Large breakage ratio
2. Layer crushing, good grain type
3. Simple structure, easy to maintain.
4. Hydraulic overload protection, do not damage the equipment
5. Different types and various choices
| Model | Movable Cone Diameter mm (inch) | Chamber Style | Opening Side | Closed Side | Discharging Opening (mm) | REV (r/min) | Power (kw) | Capacity (t/h) | Overall Size (mm) |
| Max.Feeding (mm) | |||||||||
| CSB75 | 900 (3′) | medium | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 2821*1880*2164 |
| coarse | 159 | 175 | 13-38 | 59-163 | |||||
| CSD75 | 914 (3′) | fine | 13 | 41 | 3-13 | 580 | 75 | 27-90 | 2821*1880*2410 |
| medium | 33 | 60 | 3-16 | 27-100 | |||||
| coarse | 51 | 76 | 6-19 | 65-140 | |||||
| CSB160 | 1295(4 1/4′) | fine | 109 | 137 | 13-31 | 485 | 185 | 109-181 | 2800*2342*2668 |
| medium | 188 | 210 | 16-31 | 132-253 | |||||
| coarse | 216 | 241 | 19-51 | 172-349 | |||||
| CSD160 | 1295(4 1/4′) | fine | 29 | 64 | 3-16 | 485 | 160 | 36-163 | 2800*2342*2668 |
| medium | 54 | 89 | 6-16 | 82-163 | |||||
| coarse | 70 | 105 | 10-25 | 109-227 | |||||
| CSB240 | 1650(5 1/2′) | fine | 188 | 209 | 16-38 | 485 | 240 | 181-327 | 3911*2870*3771 |
| medium | 213 | 241 | 22-51 | 258-417 | |||||
| coarse | 241 | 268 | 25-64 | 299-635 | |||||
Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
