Product Model: T100

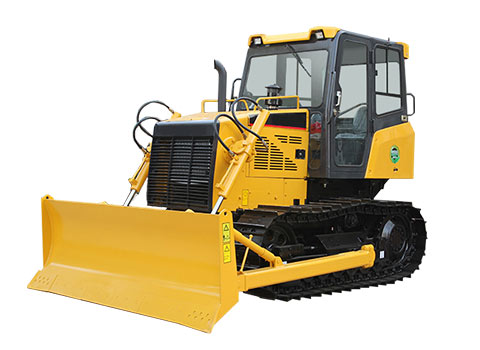

Track type tractor is a heavy machinery equipment widely used in earthwork engineering, mainly composed of engine, hydraulic system, transmission system, walking system, and working device. Often referred to as a crawler dozer.
The crawler dozer, through its track walking device, can operate in complex terrains and harsh environments, providing significant adhesion and traction. Crawler dozer has stronger bulldozing ability in land leveling and handling operations, and can drive on harsh road conditions such as mud, sand, slopes, snow, etc.
Due to its unique performance characteristics, the crawler dozer has a wide range of applications, including but not limited to the following aspects:
Mines and quarries: can be used for slope operations, and their strong traction can easily travel on rugged terrain.
Roads and buildings: can be used for cleaning sites, excavating foundations, removing soil, laying roads, and other work. Heavy duty buckets can withstand large amounts of soil and debris.
Agricultural planting: can be used for leveling land, laying irrigation systems, pruning branches and leaves, and other work.
Special terrains such as swamps, small hills, deserts, etc., tracked bulldozers can also demonstrate excellent operational capabilities.
1. Main clutch: adopting a dry, multi plate structure, frequently engaged main clutch, with the characteristics of large torque reserve and reliable operation;
2. Transmission: The transmission is a 4F+2R mechanical shift transmission, which is easy to operate, easy to maintain, and reliable to use;
3. The steering clutch is a dry type, multi plate steering clutch, operated by hydraulic power assistance, easy to maintain, and easy to operate;
4. Transmission: Adopting two-stage, straight tooth, large modulus gear transmission, it has the advantages of strong load-bearing capacity and high reliability;
5. Multiple devices such as straight tilt shovel, corner shovel, sanitation shovel, coal pushing shovel, and soil loosening device can be optionally installed;
6. Suitable for operations in wetland, muddy, and soft working environments such as hydroelectric engineering, farmland renovation, riverbanks, and ponds.
| Model | T100 |
| Rated Power/Speed (kw/r/min) | 81/2300 |
| Total Weight (kg) | 10400 |
| Land Pressure (KPa) | 54.4 |
| Grade Ability (°) | 30 |
| Pitch (mm) | 171 |
| Track Width (mm) | 450 |
| Track Centers (mm) | 1650 |
| Length Oftrackon Ground (mm) | 2160 |
| Blade Width (mm) | 2935 |
| Blade height (mm) | 960 |
| Max lifing height (mm) | 830 |
| Max. digging depth (mm) | 350 |
| Overall Dimensions(L*W*H)(mm) | 4190*2935*3020 |
Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
