Max Feeding Size: 10mm
Production Capacity: 10-100t/h
Final Water Content: as low as 12%-15%
Applications: sand washing plant, coal plant, tailings dry discharge, etc.
Dewatering screen is mainly used for dehydration,silt-removal etc, can be used in sand washing plant, coal plant, tailings dry discharge, etc., so also called sand and stone dewatering screen, mine dewatering screen, coal dewatering screen, tailings dewatering screen, high frequency dewatering screen.
Adopt double motor synchronization technology, universal eccentric block, adjustable amplitude vibrator. Through the two unconnected vibrators for synchronous reverse operation, to the sieve machine to provide the excitation force, is the material in the sieve surface linear jumping movement to achieve the purpose of the material dewatering, classification, de-mediation, desludging.
The dewatering screen recommended for you is mainly used in wet sand production line, and sand washing machine supporting the use, can also be used alone.
Adopting high quality polyurethane screen plate with good impact resistance.

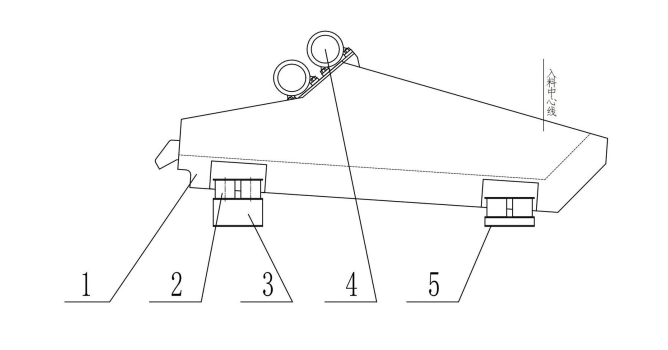

The side plates of the body have reinforcing plates, the bottom beam adopts thick-walled pipes, and the longitudinal beam adopts thickened profiles, so the strength of the body is guaranteed. The connection of the side plate of the screen box adopts high-strength bolts, which is strong, stable and reliable, and increases the strength of the machine body.
The vibrating motor is easy to replace, and the base adopts rubber spring damping, which has good damping effect and low noise. The vibration motor is fixed with high strength bolts.
| Model | Feeding Size (mm) | Capacity (t/h) | Screen Panel (mm) | Screen Area (m2) | Power (kw) | Overall Size (mm) |
| TS0918 | ≤10 | 10-20 | 900*1800 | 1.62 | 0.75*2 | 1890*1290*1080 |
| TS0924 | ≤10 | 10-20 | 900*2400 | 2.16 | 1.1*2 | 2480*1290*1220 |
| TS1224 | ≤10 | 20-40 | 1200*2400 | 2.88 | 2.2*2 | 2480*1590*1430 |
| TS1230 | ≤10 | 20-40 | 1200*3000 | 3.6 | 2.2*2 | 3080*1590*1500 |
| TS1236 | ≤10 | 20-40 | 1200*3600 | 4.32 | 3.0*2 | 3680*1590*1500 |
| TS1530 | ≤10 | 30-60 | 1500*3000 | 4.5 | 3.0*2 | 3080*1890*1440 |
| TS1536 | ≤10 | 30-60 | 1500*3600 | 5.4 | 3.7*2 | 3680*1890*1450 |
| TS1836 | ≤10 | 60-80 | 1800*3600 | 6.48 | 5.5*2 | 3720*2420*1930 |
| TS1842 | ≤10 | 60-80 | 1800*4200 | 7.56 | 5.5*2 | 4370*2420*2100 |
Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
