Capacity: 8-20m³/h
Application Scope: roads, bridges, harbours, power and water works, etc.

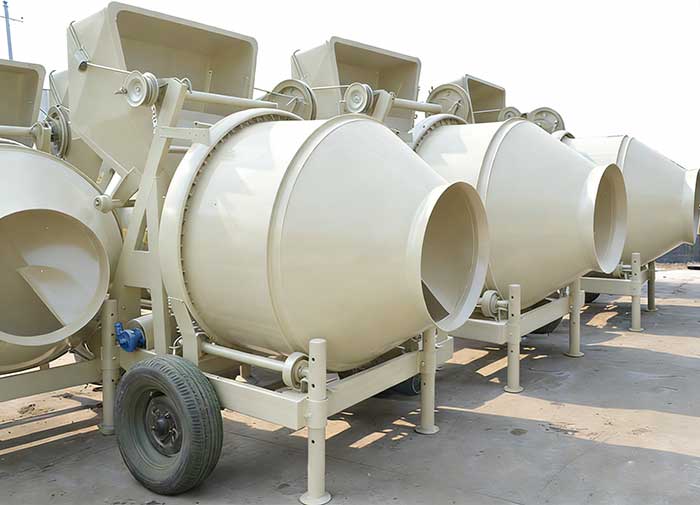

Portable Drum Mixer can not only use diesel, but also operate on electricity. The Portable Drum Mixer can be easily disassembled and transported, suitable for various construction sites without power supply areas and inconvenient traction power lines.
1. Efficiency: The drum concrete mixer can quickly and efficiently prepare concrete, improving construction efficiency.
2. High Mixing Quality: The rotating motion of the drum can mix the material very evenly, thereby improving the quality and strength of the concrete.
3. Easy Operate: The operation of the drum concrete mixer is simple and easy to understand, making it convenient for workers to use.
4. Wide Applicability: The drum concrete mixer is suitable for various types and scales of construction projects, and can meet different construction needs.
5. Easy Maintenance: The drum concrete mixer has a simple structure and is easy to maintain, which can reduce the maintenance cost of the equipment.
6. Energy Saving: Drum concrete mixers can reduce labor costs and energy consumption.
| Model | JZC250-DR | JZC350-DR | JZC250-DH | JZC500-DH |
| Discharge Capacity (L) | 250 | 350 | 350 | 500 |
| Feeding Capacity (L) | 400 | 560 | 560 | 800 |
| Theoretical Productivity (m³/h) | 8-10 | 10-14 | 10-14 | 18-20 |
| Maximum Particle Size (mm) | 60-80 | 60-80 | 60-80 | 60-80 |
| Rotating Speed of Mixing Drum (r/min) | 14 | 14 | 14 | 14 |
| Water Supply Precision | Error≤2% | Error≤2% | Error≤2% | Error≤2% |
| Diesel Engine Parameters | 8P | 15P | 15P | 15P |
| Maximum Towing Speed (km/h) | 20 | 20 | 20 | 20 |
| Tyre Specification | 6.50-16 | 6.50-16 | 6.50-16 | 6.50-16 |
| Overall Size (mm) | 2300*1900*2580 | 2600*1950*2580 | 2600*1950*2580 | 3300*2100*2580 |
| Weight (kg) | 1050 | 1350 | 1350 | 1550 |
Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
