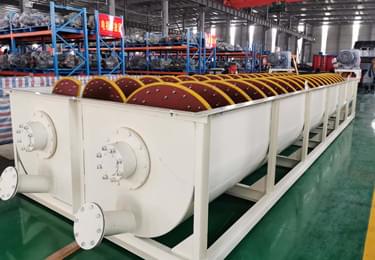

Spiral Sand Washer

Max Feeding Size: 10mm

Production Capacity: 0-250t/h

Main Parts Include: electric motor, big and small belt pulleys, triangle belt and gear reducer.

Applications: cleaning materials in quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.

You can also send us a message and we will reply to you within 24 hours.

Email: sales@lyldkj.com Get Latest Price

Product Details

Parameters

Product Details

By spiral blade stirring, silt in sand will mix with water, then be discharged out by overflow port, and the sand are gradually discharged from the top outlet, thus realizing the cleaning and screening purpose.

Organization chart:

spiral-sand-washer1

1. Overflow opening
2. Screw tail assembly
3. Screw assembly
4. Channel frame
5. Water tank
6. Motor & reducer
7. Chain shield

Product advantages

1. Large capacity

Because spiral sand washing machine wash sand by spiral instead of bucket,its capacity has been greatly improved.

2. High usage rate

Compared to energy loss caused by the wheel bucket lifting, spiral washer energy canbe better utilized effectively

Parameters

Model	Feeding Size (mm)	Capacity (t/h)	Spiral Diameter (mm)	Spiral Number	Tank Length (mm)	Power (kw)	Overall Size (mm)
LX0760	≤10	20-40	760	1	6000	7.5	5700X1420X1900
LX0920	≤10	30-60	920	1	8000	11	8710X1630X2080
LX1120	≤10	40-80	1120	1	8000	18.5	9230X1840X2130
LX1500	≤10	50-100	1500	1	8000	22	9620X2230X2480
2LX0920	≤10	60-120	920X2	2	8000	11X2	8710X2600X2080
2LX1120	≤10	80-160	1120X2	2	8000	18.5X2	9230X3050X2130
2LX1500	≤10	120-250	1500X2	2	8000	22X2	9620X3730X2480

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
